Hybrid LED Street Light · Product Series
HLX-HYB-JD300W
Solar-priority hybrid roadway lighting, 50 W LED
The HLX-HYB-JD300W combines solar-priority operation, LiFePO4 battery storage and MEAN WELL AC backup in one hybrid street-light configuration. The 300W suffix is part of the model identifier; the documented nominal LED power is 50 W.
Product gallery
HLX-HYB-JD300W Product Views
The gallery is prepared for the verified product and system photographs from the supplied catalog.
Technical specifications
HLX-HYB-JD300W Specifications
Product configuration values are presented separately from the tested photometric reference results below.
| Specification | HLX-HYB-JD300W |
|---|---|
| Product Type | Hybrid LED Street Light |
| Nominal LED Power | 50 W |
| LED Light Source | Philips Lumileds 7070 LEDs — 90 pcs |
| Operating Concept | Solar priority with battery storage and AC backup |
| Solar Panel | 120 W, 18 V, monocrystalline |
| Solar Panel Dimensions | 1000 × 670 × 25 mm |
| Battery | LiFePO4, 12.8 V, 30 Ah, 384 Wh |
| Hybrid Controller | SRNE EH120 |
| AC Backup Driver | MEAN WELL XLG-75-12-A |
| AC Input | 100–305 V AC |
| Color Temperature | 3000 K / 4000 K / 5000 K / 6500 K |
| CRI | Ra ≥70 |
| Luminaire Protection Rating | IP65 |
| Luminaire Dimensions (L × W × H) | 780 × 285 × 124 mm |
| Pole Mounting Diameter | Ø60 mm |
Solar power
120 W Monocrystalline Solar Panel
A separate panel configuration supports the solar-priority operating concept. The catalog illustration shows the panel mounted with the roadway luminaire; a product-scale panel image can be added when available.
pending media installation
- Panel TypeMonocrystalline
- Rated Panel Power120 W
- Nominal Panel Voltage18 V
- Panel Dimensions1000 × 670 × 25 mm
Panel manufacturer is not identified in the supplied material.
Energy storage
LiFePO4 Battery & Brand Options
Battery specifications are shown for the supplied configuration. No battery brand is assigned in the available product information.
pending media installation
- ChemistryLiFePO4
- Nominal Voltage12.8 V
- Capacity30 Ah
- Stored Energy384 Wh
Battery brand options can be added after the supplier and brands are confirmed.
Configuration note
Battery brand options
LiFePO4 identifies the battery chemistry. The supplied information does not identify a battery manufacturer or approved brand options.
No battery brand, cycle life, larger capacity or operating-hour claim is published here.
Configurable components
LED Light Source
Equipped with 90 Philips Lumileds 7070 LEDs.
Philips Lumileds 7070
Hybrid control
SRNE EH120 Hybrid Controller
Solar priority, battery storage, and AC backup.
Controller key specifications
The SRNE EH120 manages solar charging, battery storage and automatic switchover to grid power for the hybrid street-light system.
- System voltage: 12 V / 24 V
- Load current range: 50 mA – 4000 mA
- Maximum LED load power: 60 W / 12 V, 120 W / 24 V
- Maximum charging current: 15 A
- Solar panel open-circuit voltage: ≤55 V
- Load operating schedule: 9 periods + morning lighting
- Operating temperature: -35°C to +65°C
- Protection level: IP67
AC backup power

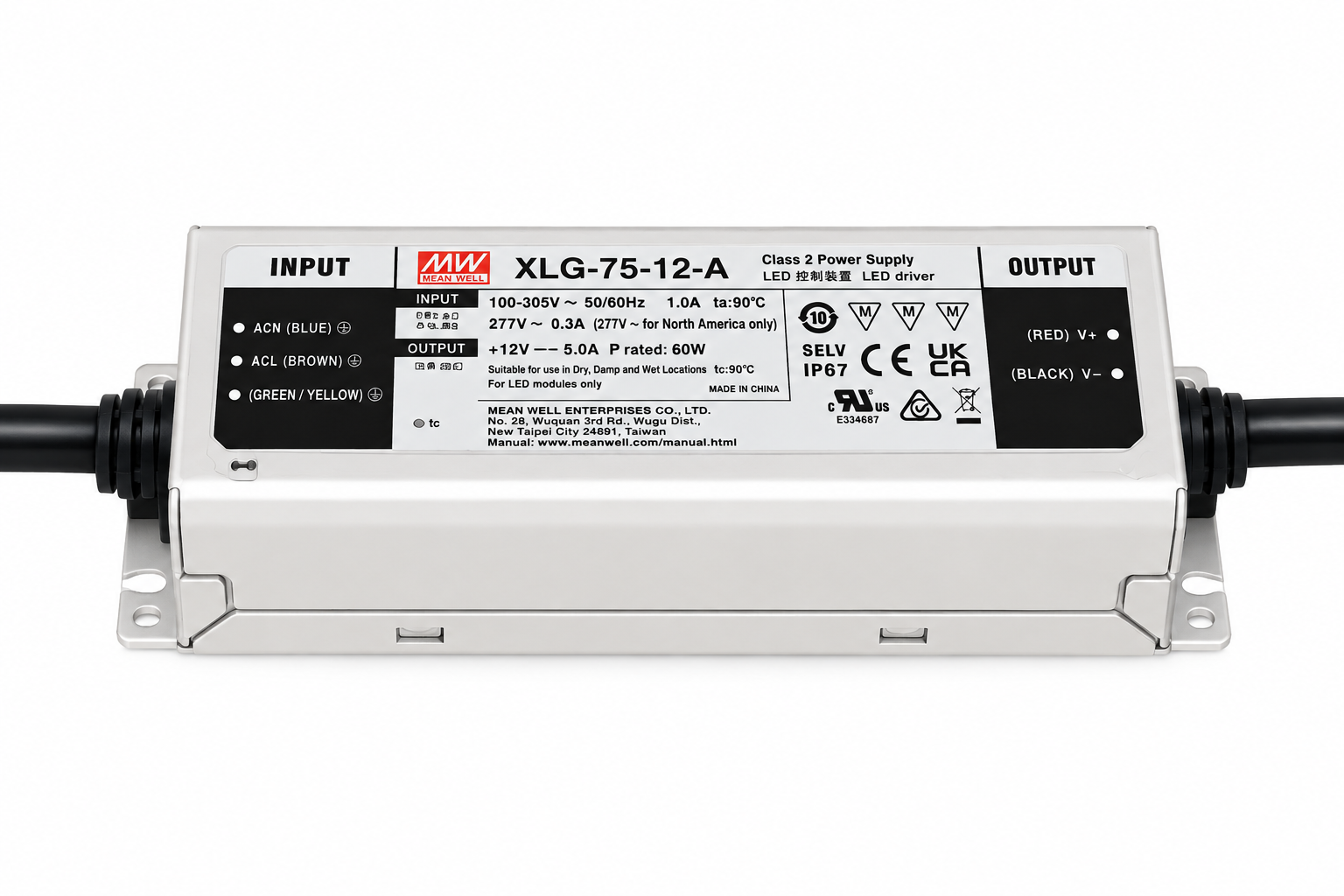

MEAN WELL XLG-75-12-A
One confirmed AC backup driver configuration for HLX-HYB-JD300W.
- FunctionAC backup driver / power supply
- Input100–305 V AC
- Output12 V DC
- Rated Output Current5 A
- Rated Output Power60 W
- Driver Housing ProtectionIP67
IP67 applies to the driver component. The luminaire protection rating is IP65. MEAN WELL XLG-75 official specification.
Color temperature
Color Temperature & Optical Options
Four CCT choices are listed in the supplied brochure for this model. The optical reference is IES Type III – Medium, as reported for the tested 50 W configuration.
CCT Options
3000 K–6500 K
- 3000 K
- 4000 K
- 5000 K
- 6500 K
Tested reference configuration
Photometric Performance
Reported measurements for the tested 50 W reference configuration · 29 June 2026.
These are reported sample measurements for one tested 50 W reference configuration and do not establish results for every LED chip or component combination. The brochure lists catalog figures of 11,000 lm and 220 lm/W separately. A public report download will be added after an issuer-corrected or traceable document for HLX-HYB-JD300W is available.
Typical applications
Hybrid roadway lighting for outdoor projects
Application and system configuration should be reviewed against site conditions and project requirements.
